8644 Häfele Startec® H2 Hinge Template

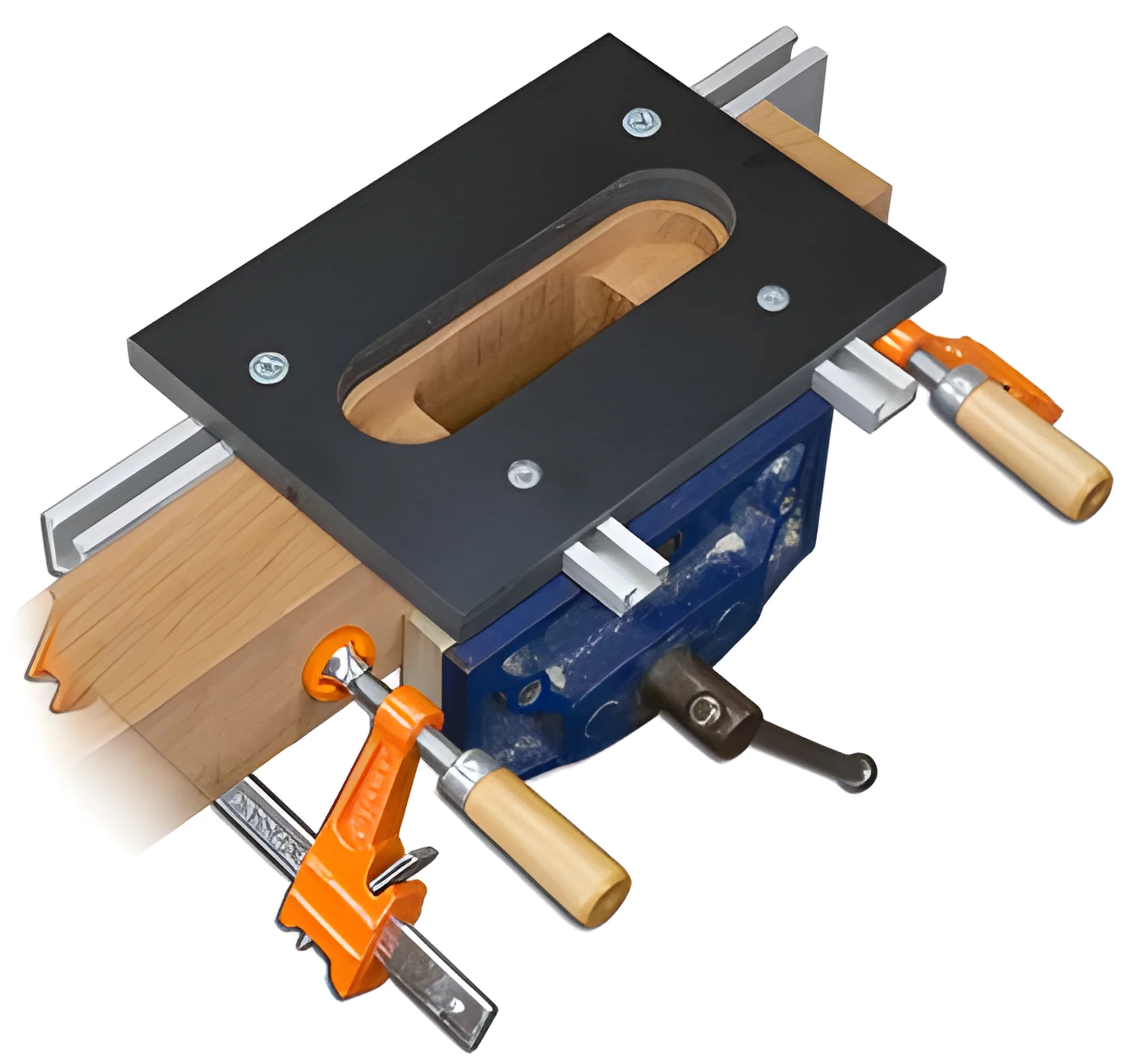

Our two-step Invisible Hinge Template Jigs are the fastest, easiest and most accurate way to rout the two-step mortises required for invisible hinges. Made of 1/2" phenolic for heavy duty use, they measure 5-5/8" x 11-5/8" for maximum router support. Includes an 12" Double Track for mounting the jig and clamping to your work. Clamps not included. Optional 4512 Flip Stop mounts on an optional 4016 16" Double Track (minimum length recommended) for quicker part indexing. Allows setting the stop up to 6" from the hinge mortise, with a spacer required for short distances. We recommend two Flip Stops, one for each side of the jig. Optional longer Double Tracks (up to 95" - 4095) available to mount multiple two-step Hinge Jigs and Flip Stops. Optional 6507 Self-Centering Drill centers itself in the invisible hinge screw mounting hole for a perfectly centered 7/64" pilot hole.
- 8644 is for a Häfele Startec® H2 hinge - with a 95mm wide x 23.3mm long shallow mortise. 60mm long deep mortise.
- Requires a 1/2" solid carbide spiral upcut bit 2" cut length (our PN 15410 or equivalent) and a 3/4" OD bushing (our PN 5032K or equivalent), both sold separately.
- If using your own bushing, make sure the nose isn't over 3/8" long.
- Hinge setback of 4mm is according to the manufacturers specs. Jig clamps to the work (no nail holes) and, using your plunge router, both the long/shallow and short/deep mortises are cut without moving the jig or part. Has two retractable stops for the short/deep mortise.
The Video below highlights our SOSS hinge jigs which use the same design style as this hinge jigs.
