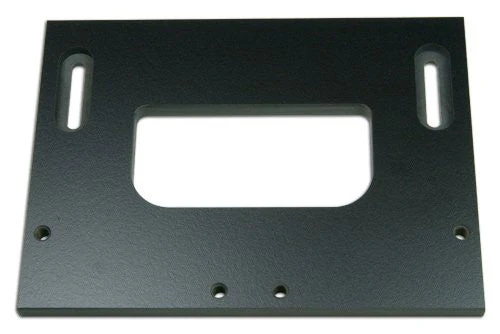

Woodhaven 4" w/ Corner Radius Hinge Template Jig

 Our heavy-duty 8541 4" with 5/8" radius corners Hinge Template Jig offers woodworkers the fastest, easiest, and most precise method to rout hinge, strike plate, and lockset mortises. Our Template Guide is designed to guide your router with a bearing-guided bit (Woodhaven 8500 or 8505, sold separately) or a guide bushing and bit combo (5030K & 13416, sold separately), it ensures flawless, repeatable results every time. The jig securely attaches to a user-supplied 3/4" thick wood fence using included hardware, which prevents tear-out and simplifies indexing. Two screw-in indexing pins keep the fence perfectly square and allow you to set your preferred backset with confidence. This template is an essential tool for achieving professional-quality door hardware installation with ease and accuracy.

 Key Features:

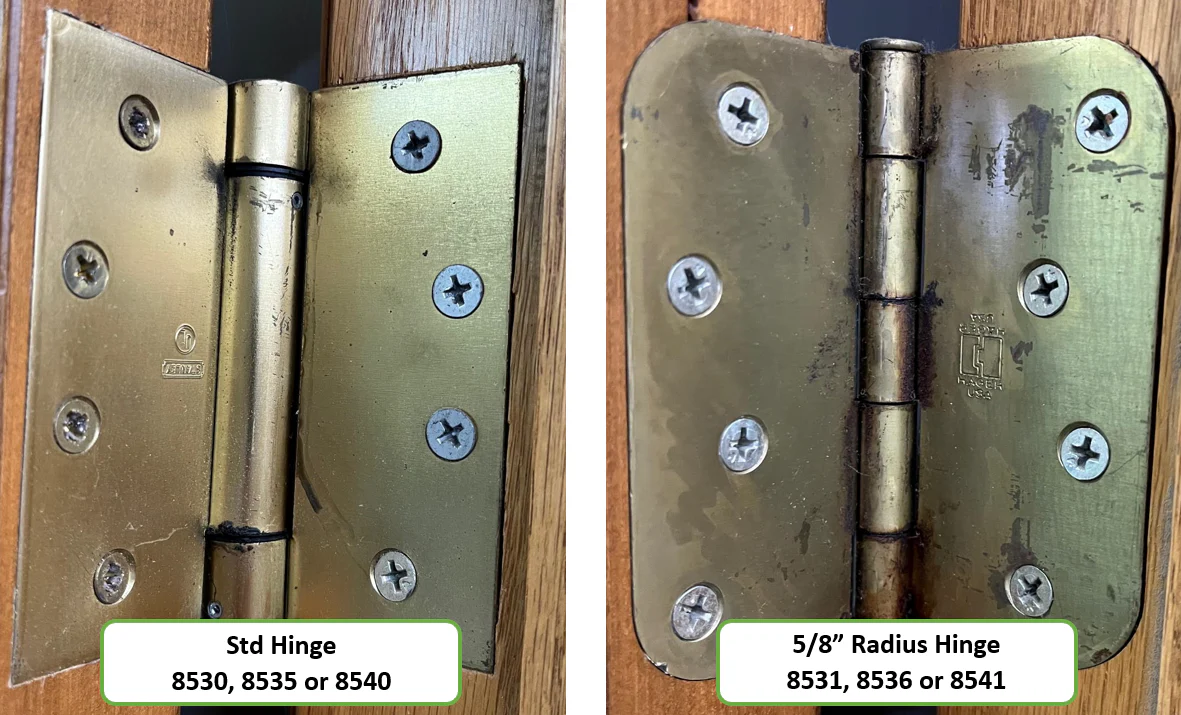

• The Hinge Template Jig is for a 4" tall Hinge with 5/8" radius corners
• Fastest, easiest, and most accurate way to rout hinge mortises
• Clamps to the workpiece no nails or blemishes in your door jamb or door
• Made of 3/8" thick phenolic for long life
• Measures 3-5/8" × 5-5/8"

Templates for other sizes are available
