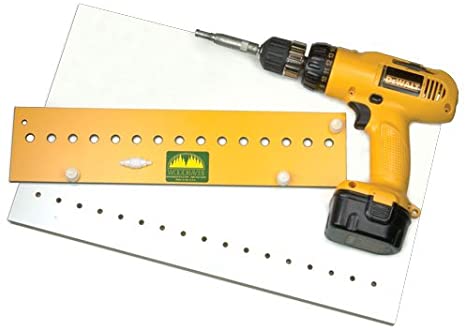

Our 784 Shelf Pin Jig is 31-1/2" long with 25 holes spaced 32 mm (1.26") on center and 37 mm (1.46") from the long edge of the jig.

• Can be used to make 5mm or 1/4" shelf pin holes with appropriate bit. This jigs compact size lets you use it in the tightest quarters.
• Lets you rout or drill either 5mm or 1/4" shelf pin holes. Drilling is easiest if your cabinet is already assembled. Routing is faster and produces a slightly cleaner/squarer hole on unassembled parts.
• Drill accepts 3/8" OD self-centering drills (order separately), or a guide bushing & router bit (order separately).
• Made of tough 1/4" thick phenolic.
• Drill NOT included.
